Yamaha Interface Card

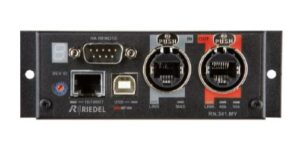

The RN.341.MY card fi ts into a Yamaha MY-card expansion slot and gives access to 16 input and 16 output channels. A wordclock input and output is available to the host device via the backplane connector and a front panel rotary switch is provided for device identification and selection of up to 15 programmable routing tables.
The RN.341.MY makes the respective Yamaha product become a part of the network and enables the remote control of the RN.301.MI microphone pre-amplifi ers. Remote control is supported by either a 9-pin connector or via the backplane (for LS9 consoles). The card is compatible with the following Yamaha host devices: DM1000, DM2000, DME24N, DME64N, LS9-16, LS9- 32, M7CL, PM5D, PM5D RH, TX4n, TX5n, TX6n.
