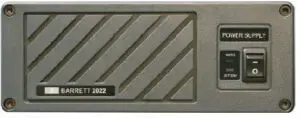

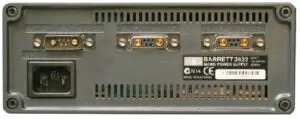

The Barrett 2022 is a 13.8 V DC regulated, 21 Amp power supply capable of operating on AC input voltages from 88 VAC to 264 VAC without input voltage switching and is designed to power the Barrett 2000 series of HF transceivers and accessories.
The 2022 power supply incorporates loudspeakers for the 2000 series transceiver when used in a base station configuration. The loudspeaker is automatically connected to the transceiver via the power connector. The power supply is provided with an internal fan allowing operation at a 100% duty cycle for data applications. The 2022 power supply is supplied with four IEC cord sets that will suit most mains power outlets used throughout the world.
